Spur gear hand winch 600 kg

Finish

Explanation

Options

Explanation
Product price: 374,00
Total options:
Order total:
This product just not to your liking?
Request a custom made quotation >

Unique features

  • High speed due to spur gear transmission
  • Semi-closed housing
  • Load pressure brake with double ratchet system

Downloads

Product sheet (.pdf, 481.29 KB)
Instructions (.pdf, 1.37 MB)
3D drawing (.STEP, 1.33 MB)

Everything about this product

Spur gear hand winch 600 kg

Spur gear hand winch 600 kg

Select options

Product information

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

Specifications

    • winch suitable for lifting and pulling in compliance with EN13157
    • static safety factor 4
    • load pressure brake with double ratchet system for safe stable hold of the load in any position
    • cable outlet upwards
    • adjustable crank

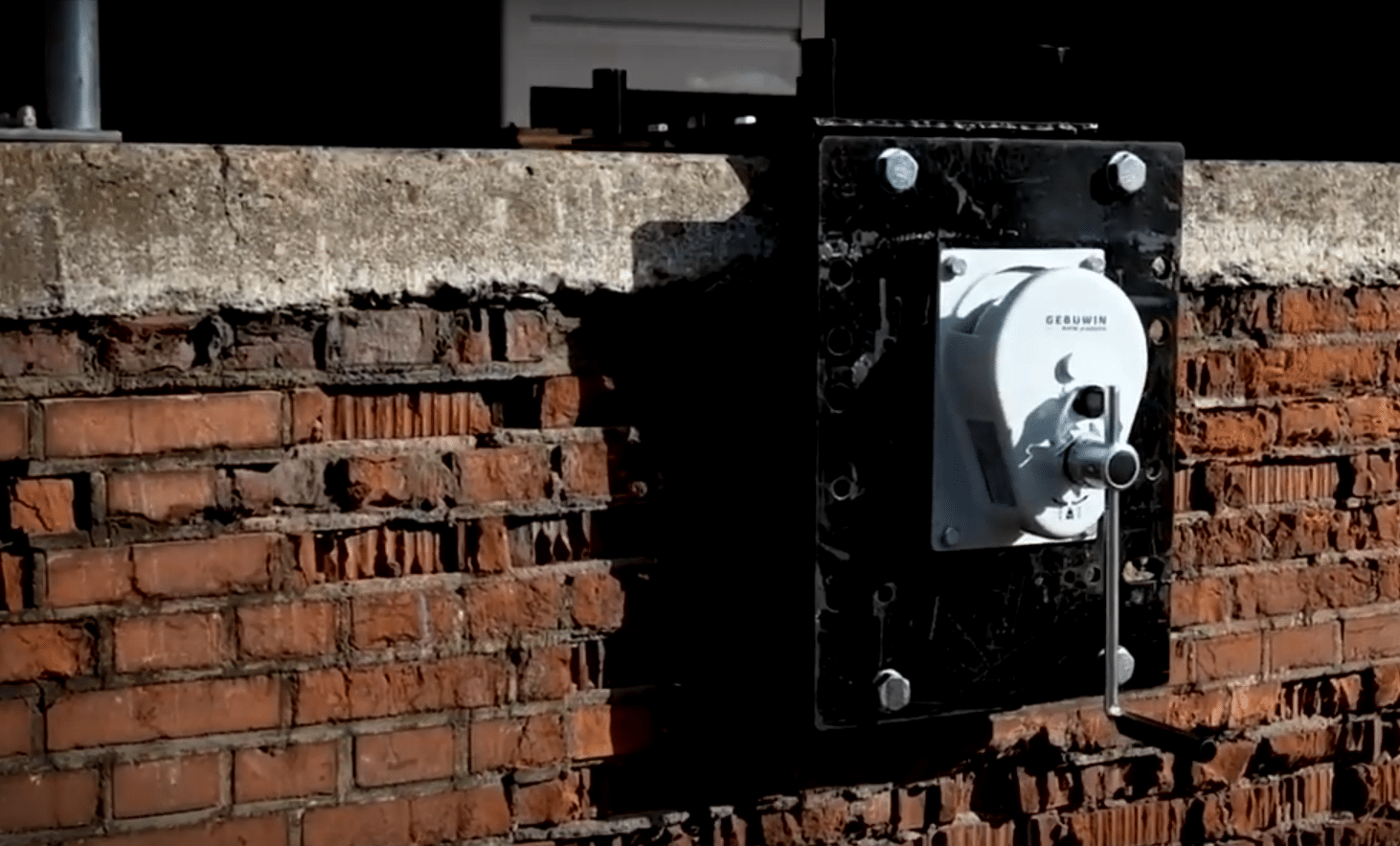

    • suitable for wall mounting
    • 1 layer of paint

Technical specifications

Capacity 1st layer

600 kg (1323 lb)

Capacity 4th layer

408 kg (899 lb)

Capacity top layer

336 kg (741 lb)

Lifting speed

1,7 m/min (6 ft/min)

Rope diameter-Ø

6 mm (0.24 in)

MBL of cable

17 kN

Rope storage 1st layer

1 meter (3 ft)

Rope storage 4th layer

7 meter (23 ft)

Rope storage top layer

12,3 meter (40 ft)

Crank effort at full load

10 kg (22 lb)

Weight (without rope)

11 kg (24 lb)

Article number

77131000

Type name

TL600

Downloads

Product sheet (.pdf, 481.29 KB)
Instructions (.pdf, 1.37 MB)
3D drawing (.STEP, 1.33 MB)
