Can I use a drill on a hand winch?

A hand winch is designed to be operated manually, at a speed suitable for such operation.
The typical speed of manual operation averages around 60 revolutions per minute, and the entire construction of a hand winch is based on this. However, when a drill is used on a hand winch, with its typically much higher speed of at least 1200 revolutions per minute, various problems can arise:

Firstly, the grease in the transmission, which provides lubrication, may not remain effective at a much higher speed. This can lead to inadequate lubrication and damage to the transmission. Additionally, the high speed and associated vibrations throughout the winch can cause problems for the bearings, which are designed for a much lower speed of 60 revolutions per minute. Conclusion: A hand winch is not suitable for use with a drill.

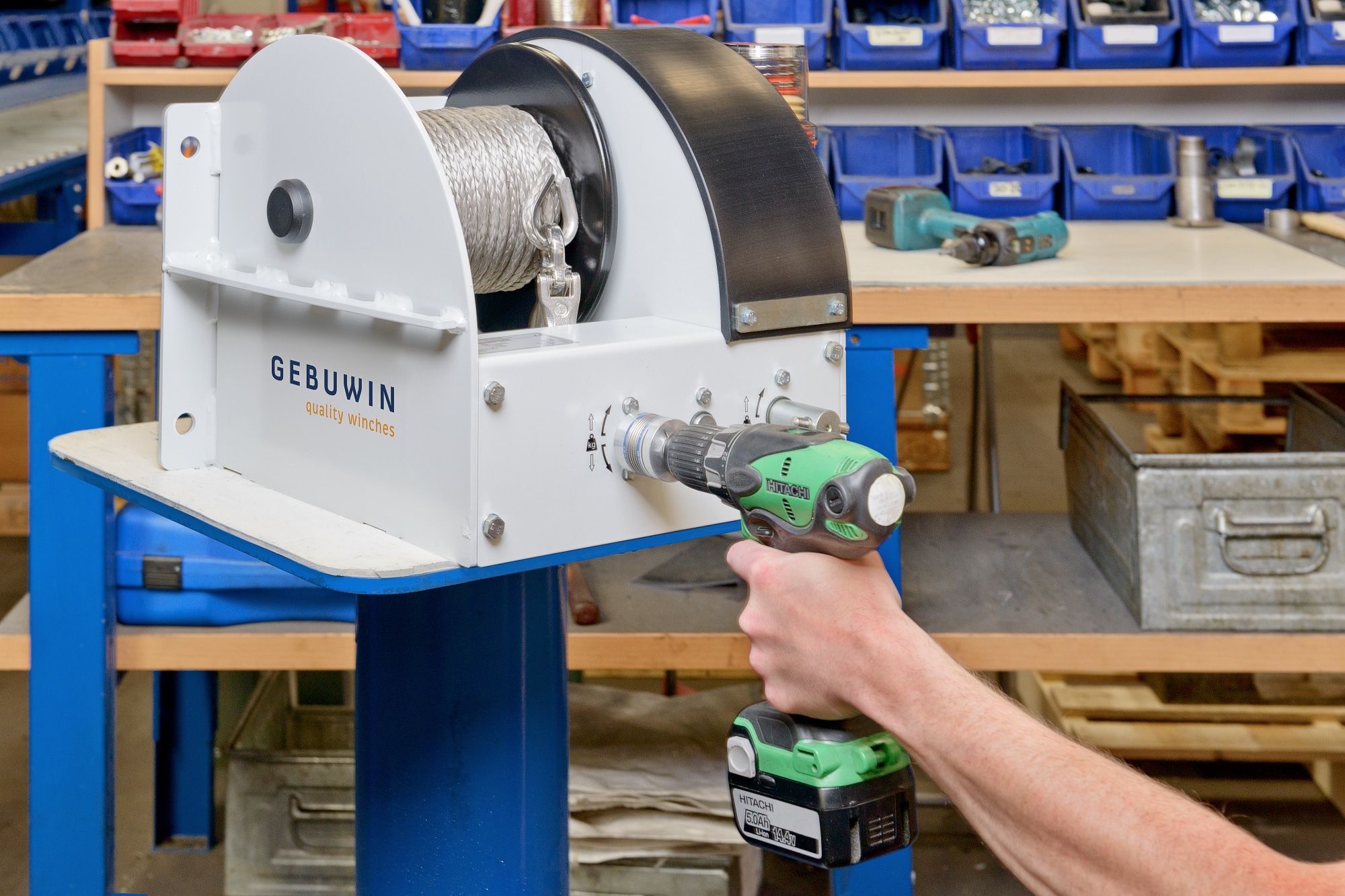

However, we have developed three products that can be used with a drill. One of them is the DW1000 drill winch, which can be operated both manually and with a drill. We have integrated an automatic lubrication system into this winch that lubricates the transmission with each revolution, preventing drying out at high speeds. Additionally, we have applied a flexible coupling to absorb vibrations caused by the drill. Furthermore, we have added an extra gearing mechanism to reduce the speed.

As a result, the DW1000 is a versatile winch that can be used both manually and with a drill.
